✅INFORMATIONS GÉNÉRALES :

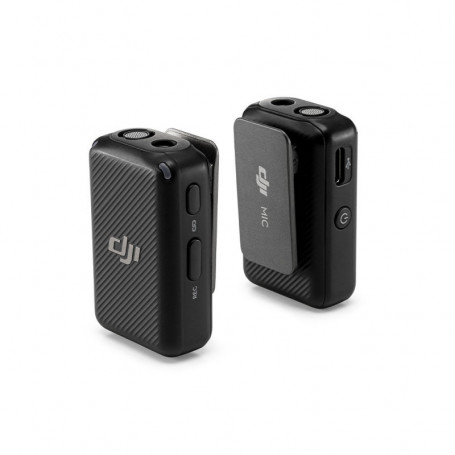

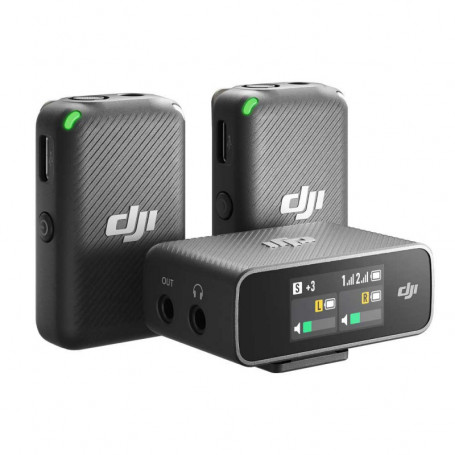

✅DJI Mic Transmitters
Model : AST01
Dimensions : 47.32×30.43×20.01 mm
Weight : 30 g
Wireless Mode : GFSK 1 Mbps and 2 Mbps
Equivalent Isotropic Radiated Power (EIRP) : <20 dBm
Operating Frequency : 2400-2483.5 MHz
Battery Type : LiPo 1S
Battery Capacity : 320 mAh
Battery Energy : 1.23 Wh
Battery Voltage : 3.85 V
Charging Temperature : 5 to 45° C (41° to 113° F)
Operating Temperature : 10° to 45° C (14° to 113° F)
Charging Time : 70 mins
Operating Time : 5.5 hours

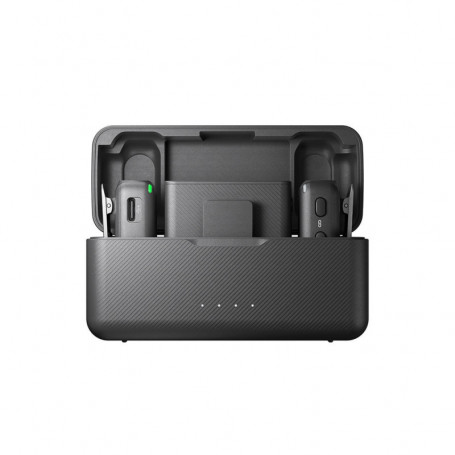

✅Charging Case :
Model : ASB01
Dimensions : 103.06×61.87×41.50 mm
Weight : 162.2 g
Battery Type : LiPo 1S
Battery Capacity : 2600 mAh
Battery Energy : 10 Wh
Battery Voltage : 3.87 V
Charging Temperature : 5 to 45° C (41° to 113° F)
Operating Temperature : 5 to 45° C (41° to 113° F)
Charging Time : 2 hours and 40 mins
Operating Time : Fully charge three devices simultaneously 1.8 times
✅General
Microphone Directions : All Directions
Frequency Response : Low Cut Off: 50 Hz – 20 kHz
Low Cut On: 150 Hz – 20 kHz
Max Sound Pressure Level (SPL) : 114 dB SPL
Max Input Level (3.5 mm) : 17 dBV (THD < 0.1%)
Equivalent Noise : 23 dBA
Monitor Interface Output Power : Max Output 22mW@1kHz, 32Ω
Max Transmission Distance : 250 m (FCC) – 160 m (CE)
